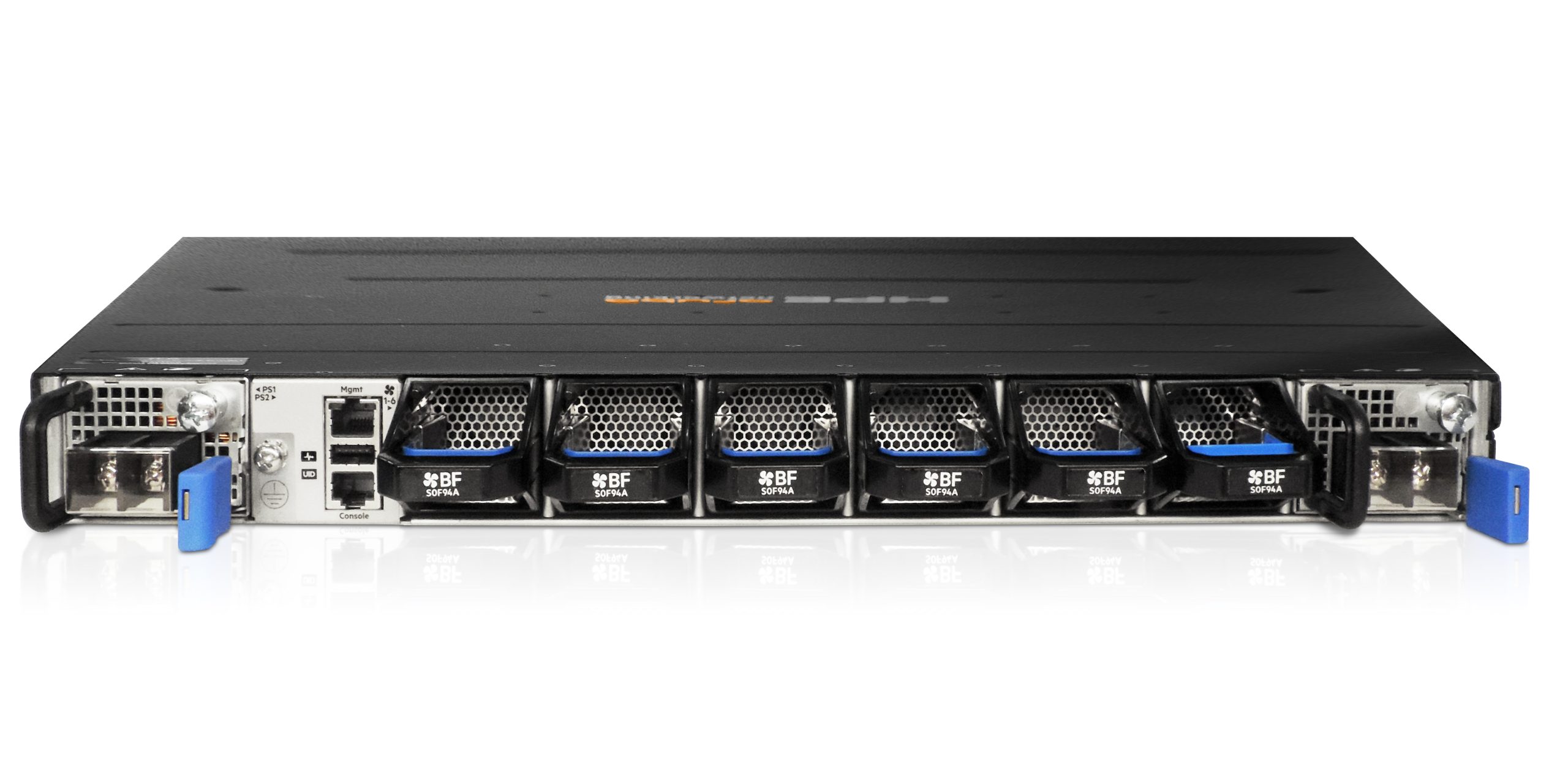

HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC TAA Bundle (S0F87A)

HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC TAA Bundle (S0F87A)

Name: HPE Aruba Networking CX 9300S 32p QSFP28 100G 8p QSFP-DD 400G Back-to-Front 6xFan 2xDC TAA Bundle (S0F87A)
SKU: UKDPIT-HPE-S0F87A
Availability: BackOrder

£81,361.00

The HPE Aruba Networking CX 9300 Switch Series provides 25.6Tbps, 1U fixed configuration that supports 32 ports of 100/400GbE. This series is designed to provide flexible, cost-effective, high-density 400GbE for servers, storage, and intra-fabric connectivity.

The HPE Aruba Networking CX 9300 Switch Series protects enterprises’ investment as they as they transition server farms from 10GbE and 25GbE to 100GbE/400GbE EVPN-VXLAN spine configurations, with reduced power and a smaller footprint. It supports large data center pods of up to 6,000 x 25G servers or up to 2,000 x 100G servers. This is an significant jump in scaling/density over current HPE Aruba Networking CX 8325-32C, which scales to 700 x 25G servers.

Available on backorder

SKU: UKDPIT-HPE-S0F87A Category: Aruba CX 9300 Series Tags: aruba, switch

Differentiator

Includes 2 BF Power Supplies with no additional open PS slots, warning: 200-225VAC use only
Includes 6 BF Fan Tray Bundles with no additional open FT Slots
2 Post Rack Kit included, must select 4 Post Rack Kit
Min=0 \ Max = 32 QSFP+/QSFP28 40/100G Transceivers
Min=0 \ Max = 8 QSFP-DD 400G Transceivers
QSA28 Adapter Min=0 \ Max=40, ports 1-40 (rule7)
1U – Height

Ports

SNMP
RJ-45 serial
RJ-45 OOBM Ethernet Port
Micro USB

Memory and processor

32GB RAM, 1.7GHz Processor,128GB m.2 SSD, 4GB mSATA, 128MB SPI Flash, 16GB x2 SODIMM

Throughput

5Bpps

Switching capacity

25.6Tbps

Routing capabilities

Static (IPv4/IPv6)
RIPv2
RIPng
OSPF
OSPFv3
BGP-4
MP-BGP with IPv6
PBR
ECMP
EVPN-VXLAN

Management features

SNMP
RJ-45 console Port
Micro USB console port

Power supply name

Includes 2 FB Power Supplies (R8Z97A) with no additional open Power Supply slots, warning: 200-225VAC use only

Input voltage

100-127 / 220-240 VAC 220-240V required to support 8-32 port production configuration

Operating temperature

32°F to 113°F (0°C to 45°C) Max

Power consumption

Max: 600W or 615W, Idle: 210W or 221W depending on the model

Heat dissipation

4,435 BTU/hr (Max)

Weight	11.85 kg
Dimensions	4.35 × 43.84 × 59 cm
